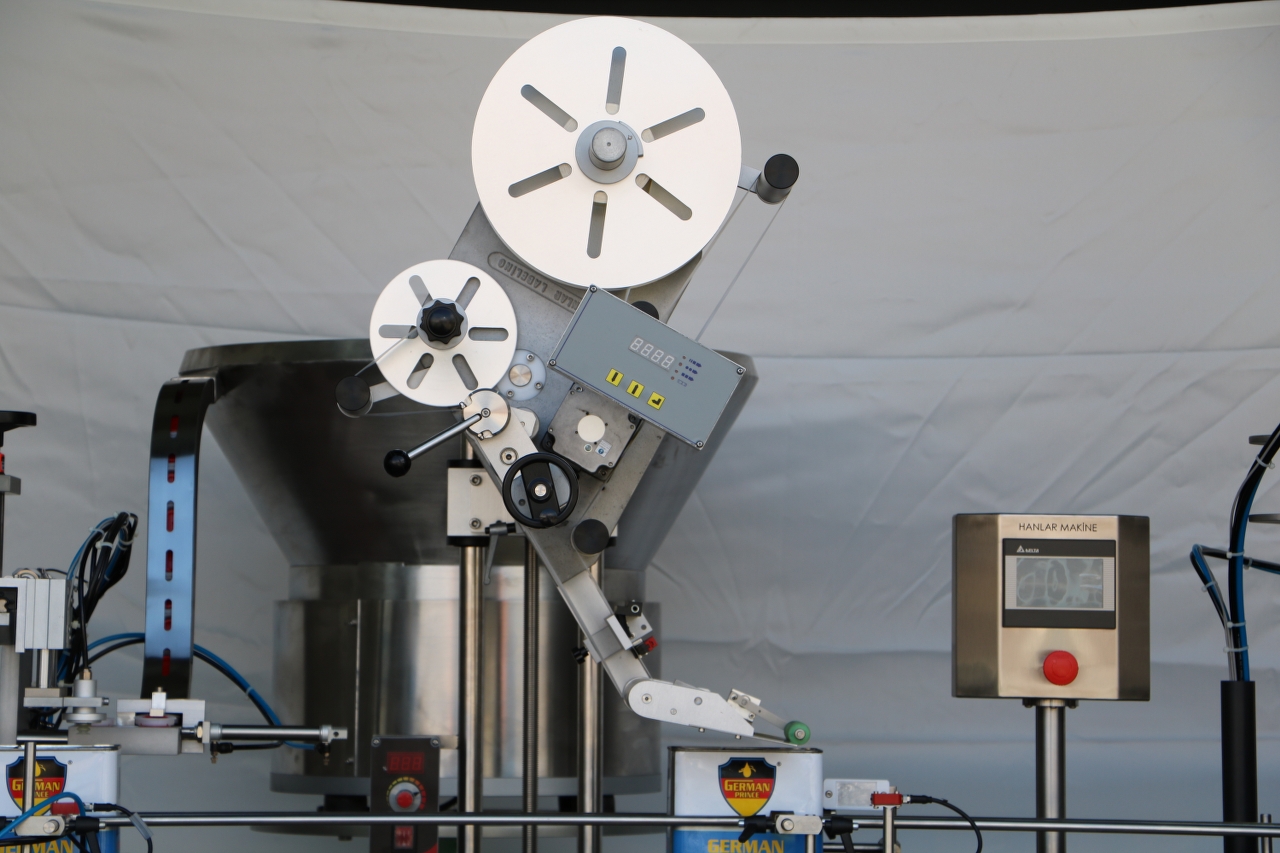

EMD/100 - Vertical Labeling Machine
EMD/100 - Vertical Labeling Machine
All parameters are adjustable via buttons on the micro processor,like label length adjustment , Label positioning etc,, For the konical bottles ;the label angles adjustment system is standart on all the machines The chasis are made of AISI 304 SS , easy mounting and compact design competetive prices
TECHNICAL DETAILS
- Capacity 25 mt per minute
- One Labelling Module
- Label’s roll İnner diameter 40or 76 mm outer diameter 300 mm
- Bottle correction side belts upper pressure belts
- Chasis AISI304 SS
- Labels width minimum 25 mm maximum 160 mm(240 mm special labelling modules also available)
- Only for the top labels vertically labelling ,on the top og Jars or Bottles etc,,
- 220VAc 50/60 Hz
