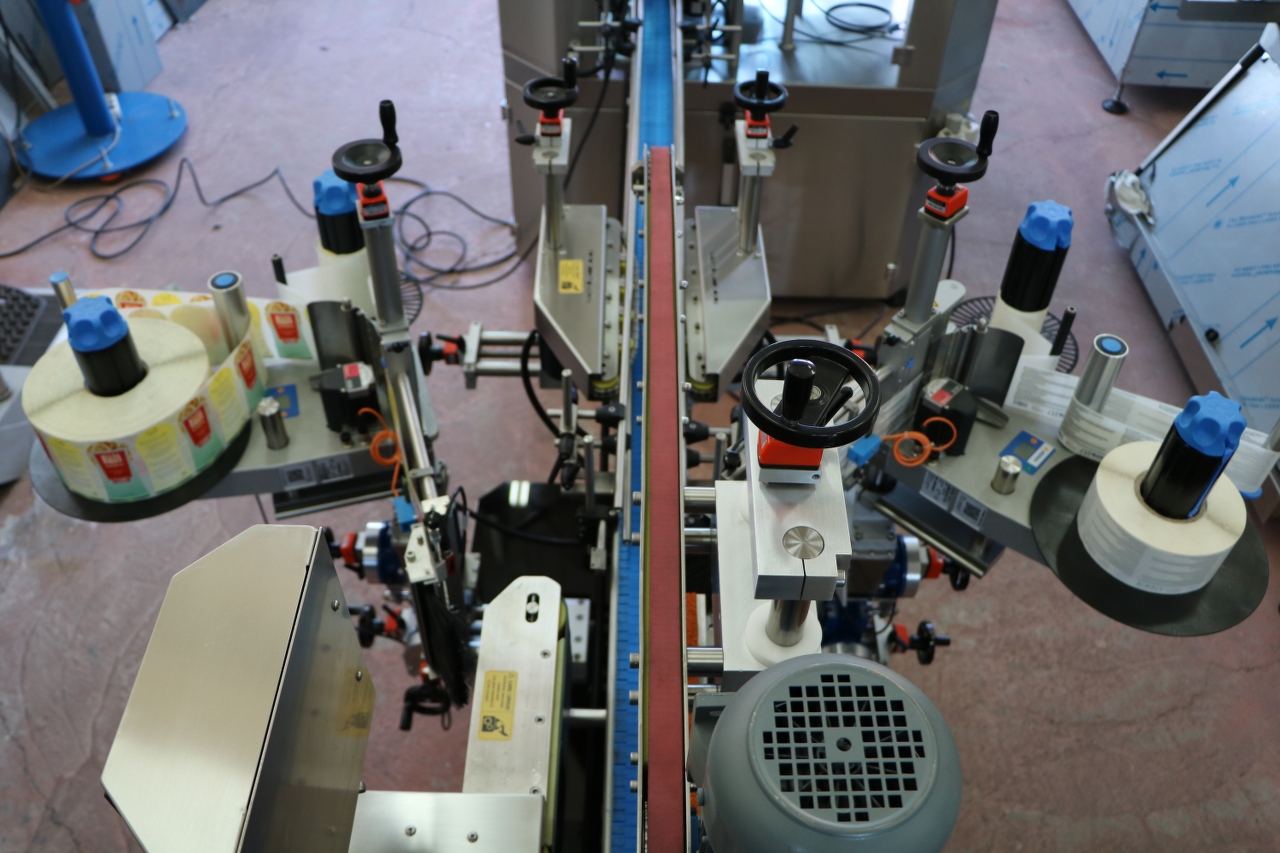

EMC/400- Double Side Labeling Machine

EMC/400- Double Side Labeling Machine


All parameters are adjustable via buttons on the micro processor,like label length adjustment , Label positioning etc,, For the konical bottles ;the label angles adjustment system is standart on all the machines The chasis are made of AISI 304 SS , easy mounting and compact design competetive prices


TECHNICAL DETAILS



  • Capacity 25-50 mt per minute
  • Two labelling module one left ,one wrigth  module
  • Label’s roll İnner diameter 40or 76 mm outer diameter 300 mm
  • Bottle correction side belts upper pressure belts
  • Chasis AISI304 SS
  • Labels width minimum 25 mm maximum 160 mm(240 mm special labelling modules also available)
  • Two side or one side,Wrap arround  labelling ,for rectangular square ,round bottles
  • 220VAc 50/60 Hz​​​​​​​
