T/500-Semi Automatic Piston Filling Machine
T/500-Semi Automatic Piston Filling Machine

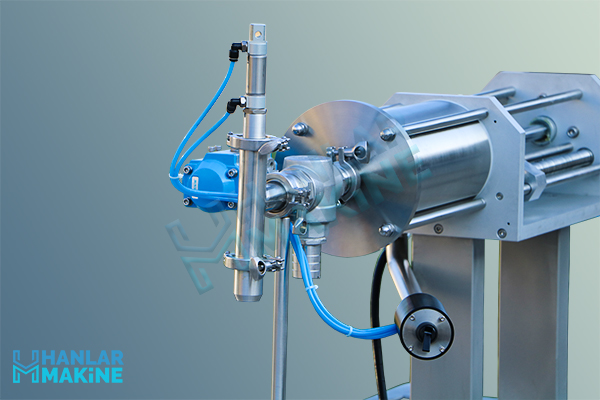

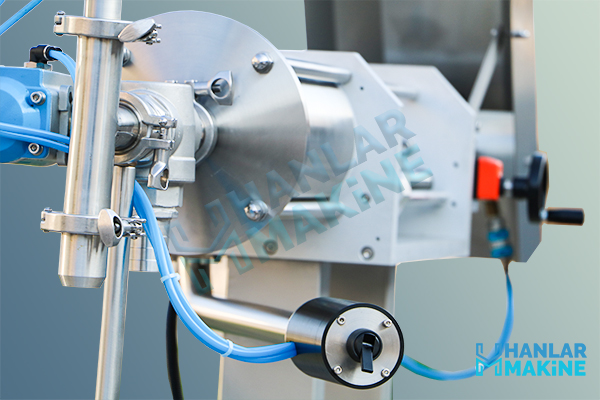

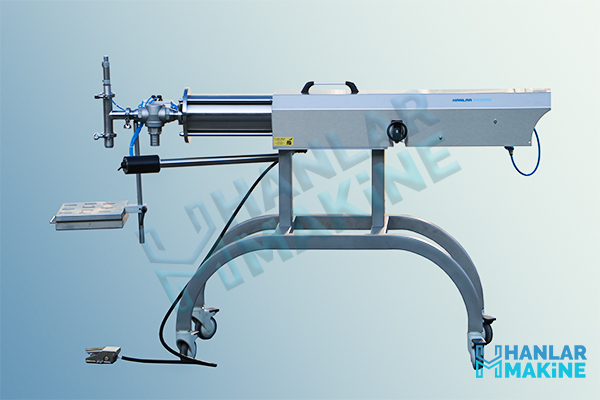

1the volumetric filling machine is controlled by pneumatic system ,the nozzles are designed ,as per packages with anti dropping system , filling amount is adjusted and recorded via mechanic indicator , as the machine produced on wheels can be transported easily to anywhere for filling , the filling range is variable as per requirement , fort he viscous products hopper should be used
TECHNICAL DETAILS
- Capacity is 400 – 800 Pieces/Hour
- Filling Range is 100 cc - 1000 cc - 5000 cc
- Made of AISI 304 Stainless Steel
- Number of Nozzles are 1-2
- Sensitivity %0,3
- Filling Type is Volumetric System
- Working Pressure is 6-7 bar
PRODUCTS TO BE FILLED
- Vegetable Oils
- Juices
- Marmelade/Cream/Honey
- Paint/Solvent
- Chemical Oils
- Shampoo/Detergent
- Liquid Soap
- Cleaning Agents
- Lotion/Solution
- Medical ProductsLiquid Fertilizers
