CAP/PTV-L PushPull Triger Valve Capping Machine

CAP/PTV-L PushPull Triger Valve Capping Machine

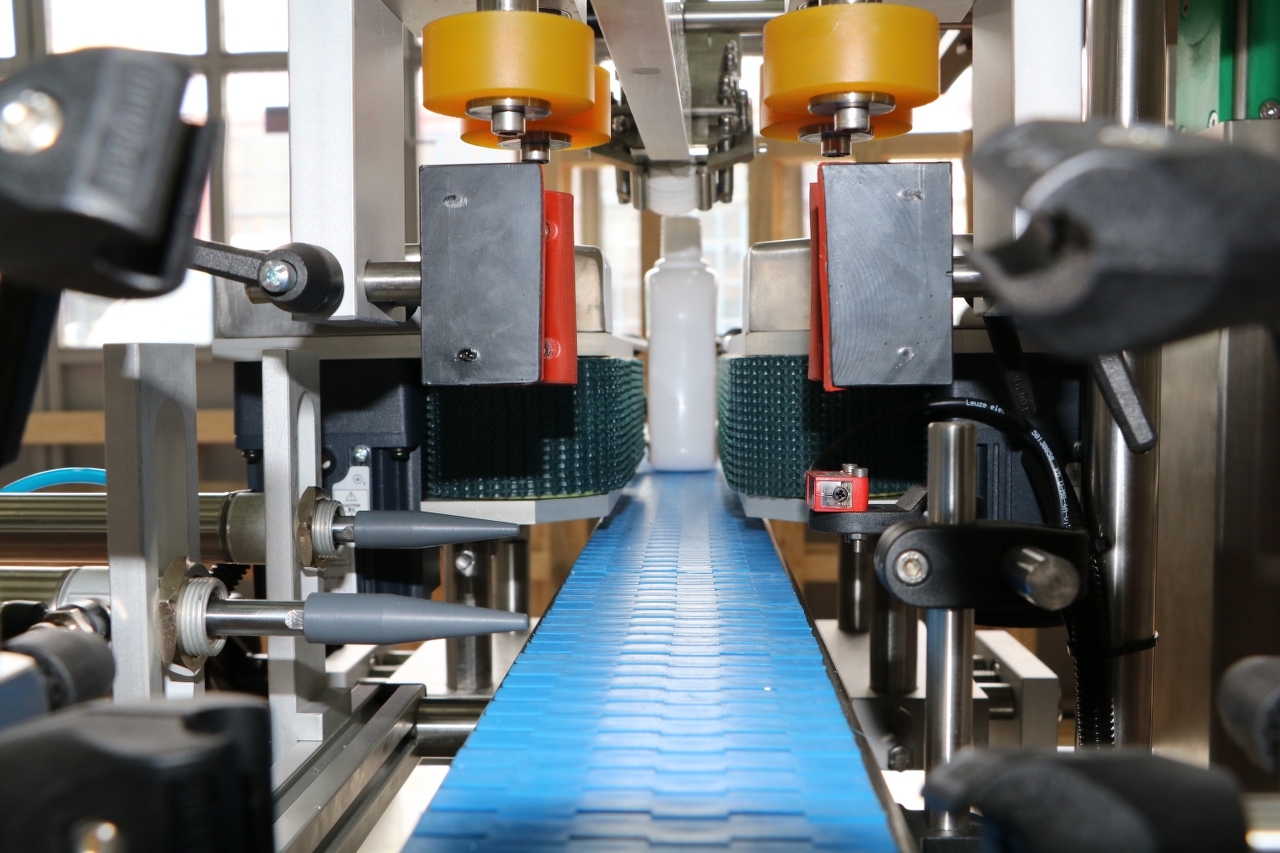

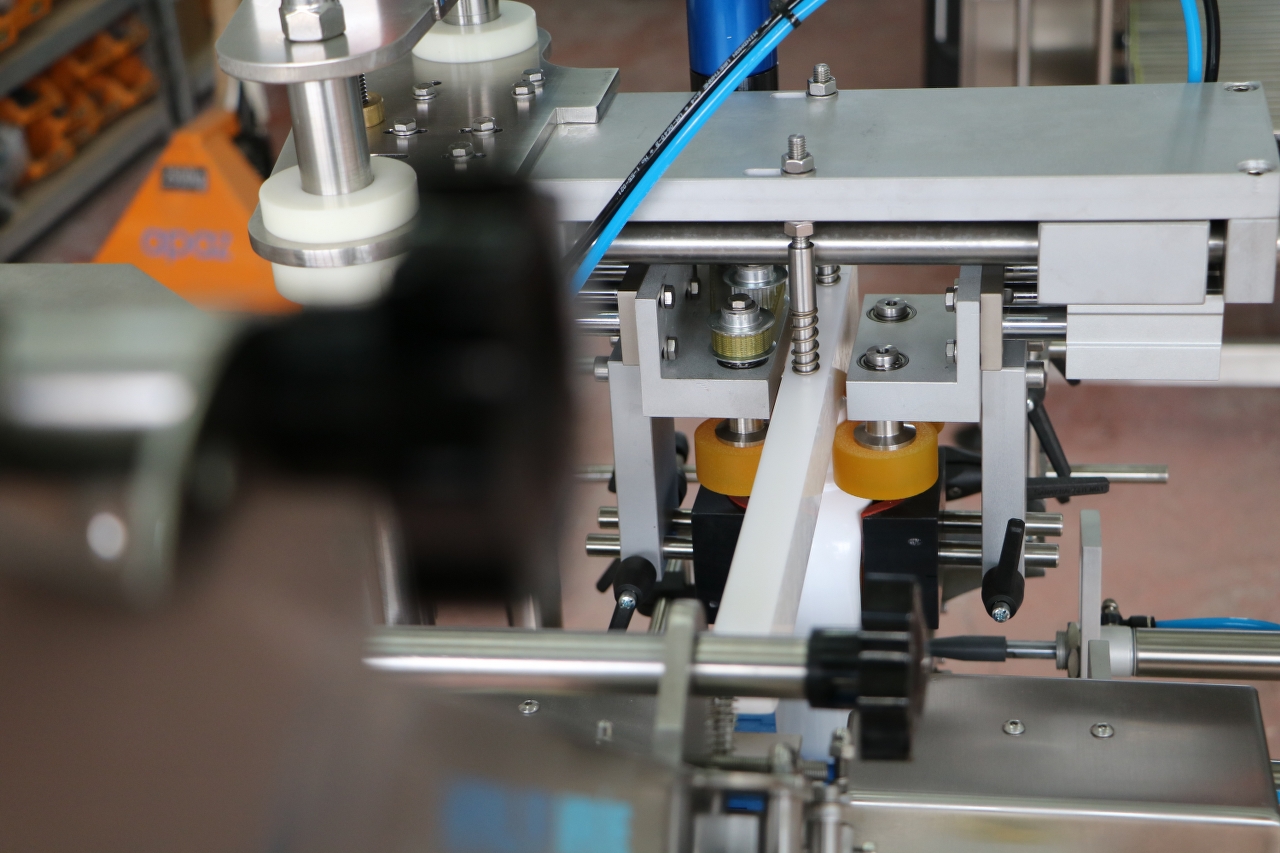

The machine works with 4 wheel system located on the left and wrigth side ,also have a bottle position correcting system to provide true capping ,suitable for push-pull,trigger valve type caps , Lineer or rotating systems are available ,the capacity of the machine is variable ,depending on the bottles and caps dimensions


TECHNICAL DETAILS

  • Capacity 1500-3000 pcs per hour
  • Lineer system
  • Chasis AISI304 SS
  • Capping head with 4 wheels turning system
  • Air motor controlled capping head
  • Air Pressure 6-8 bars
  • 220VAc 50/60 Hz
